ACSR Conductor 150/25 mm² Aluminum Conductor Steel Reinforced with Galvanized Steel Wire for Uninsulated Overhead Line IEC61089 EN50182 GB/T-1179

Product Categories
Zhenglan Cable Technology Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

ACSR Conductor 150/25 mm² Aluminum Conductor Steel Reinforced with Galvanized Steel Wire for Uninsulated Overhead Line IEC61089 EN50182 GB/T-1179

Brand Name : Zhenglan Cable

Model Number : ACSR 150/25 IEC61089 / EN50182 / GB/T-1179

Certification : 3C; ISO 9001:2015, ISO 14001:2005, OHSAS 18001:2007

Place of Origin : Henan, China

MOQ : 1000m

Price : 0.5-80USD/m

Payment Terms : T/T,L/C

Supply Ability : 10-30tons/day

Delivery Time : 15 days

Packaging Details : Wooden drum, wood and steel drum,as customer's request

Material : ACSR 150/25 IEC61089 / EN50182 / GB/T-1179

Aluminum : aluminum and galvanized steel wire

Core : Steel

Cable Drum Length : Customized

Main Composition : aluminum

Contact Now

ACSR 150/25 IEC61089 / EN50182 / GB/T-1179
ACSR conductors are made of rigid drawn aluminium wire and round galvanized steel wire. They are used as uninsulated overhead line for transmission and distribution of electric power. ACSR Conductor plays an important role in the electricity transmission field.
Manufacture Reference Standards
IEC60889: Hard drawn aluminum wire for overhead line conductors
IEC60888: Zinc coated wire for stranded conductors
Technical Specifications
Code Name Area (mm²) Equivalent Copper Area (mm²) Stranding and Wire Diameter Approx. Overall Diameter (mm) Weight (kg/km) Rated Strength (kN) Maximum DC Resistance at 20°C (Ω/km)
150/25 149(Al)
24.2(Steel)
173.0 (Total)		 - 26/2.7 (Al)
7/2.1(Steel)		 17.1 600.5 53.67 0.1940

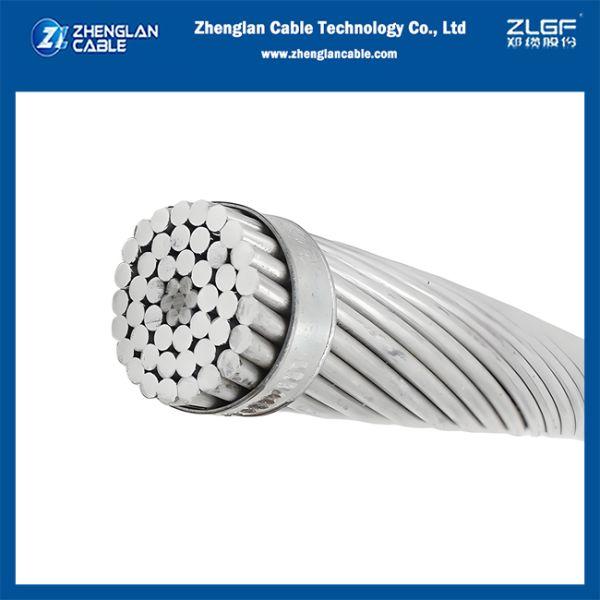

Product Images
ACSR Conductor 150/25 mm² Aluminum Conductor Steel Reinforced with Galvanized Steel Wire for Uninsulated Overhead Line IEC61089 EN50182 GB/T-1179
ACSR Conductor 150/25 mm² Aluminum Conductor Steel Reinforced with Galvanized Steel Wire for Uninsulated Overhead Line IEC61089 EN50182 GB/T-1179
ACSR Conductor 150/25 mm² Aluminum Conductor Steel Reinforced with Galvanized Steel Wire for Uninsulated Overhead Line IEC61089 EN50182 GB/T-1179
Quality Assurance
  • Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirements accepted
  • Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007
  • Registered capital of $30 million with factory covering 60,000㎡
  • Advanced test equipment and procedures, 100% inspection before factory shipment
  • Ample stock inventory with guaranteed efficient shipping times
